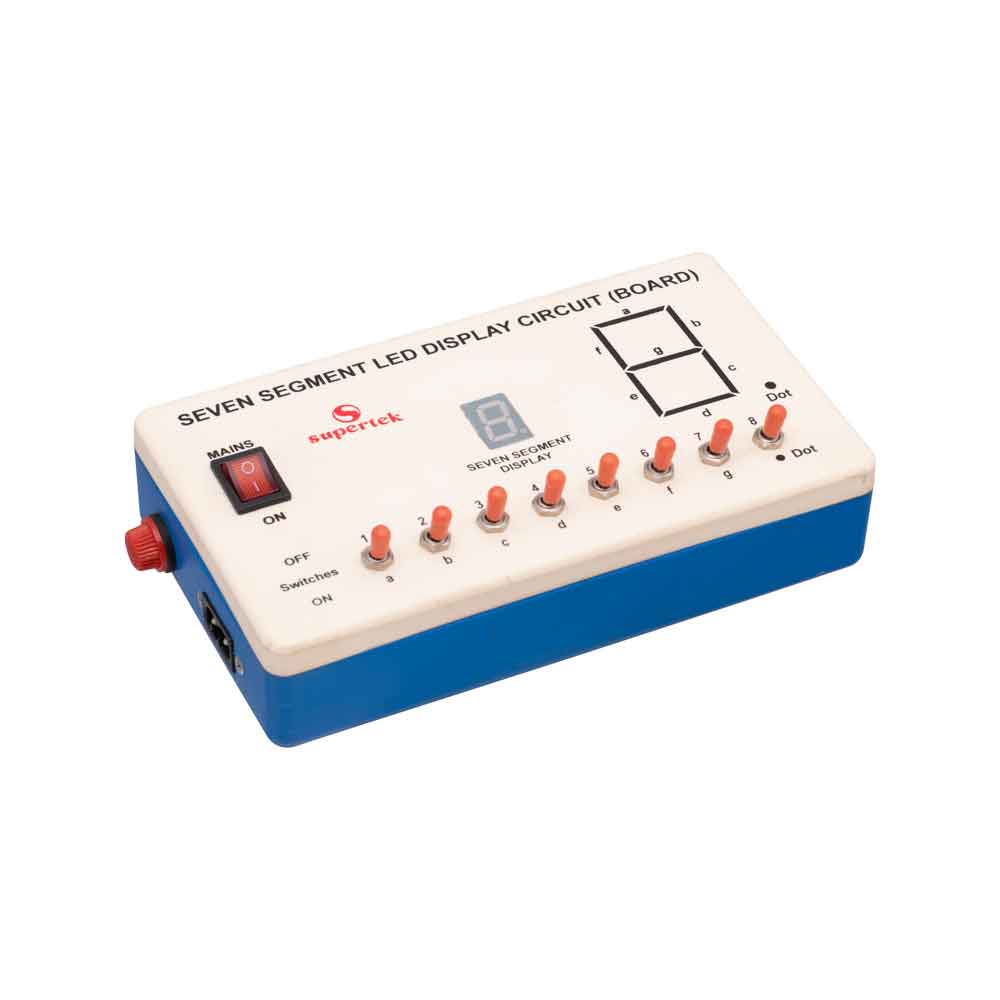

Seven Segment LED Display Circuit
A common anode seven-segment module is fitted on a board with an 8-bit dip switch to control each segment of seven segments LED display. A resistor is fitted with a common point of a seven-segment display to protect the LEDs.
