Digital Trainer Using NAND Gates

Complete with a Regulated power supply of + 5V/500 mA. Provided with 4 Logic input switches (bounceless) and 4 LED Indicators (Buffered).

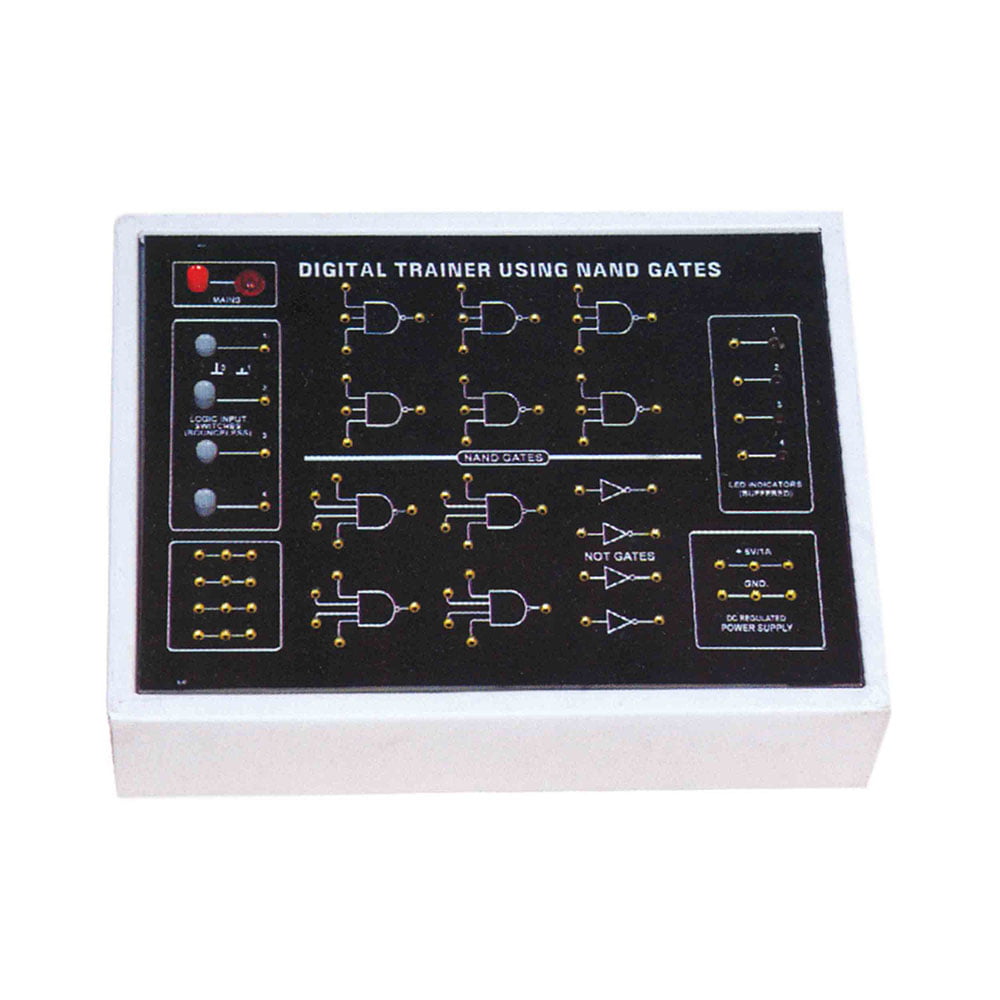

Functional diagram of:-

• 3 Input NAND – 6 No.
• 4 Input NAND – 4 No.
• 1 Input NOT Gates – 4 No. is printed on board.
• 12 Interconnection Leads and User’s Manual are provided.
